Μηχανή τρύπησης δοχείων τροφίμων
Created with Pixso. LK-T80 Food Container Punching Machine Equipped with Closed Lubrication System

LK-T80 Food Container Punching Machine Equipped with Closed Lubrication System

Ονομασία μάρκας: LIKEE
αριθμός μοντέλου: LK-T80
Τροποποιημένο: 1 σετ
τιμή: $45000-75000/set
Χρόνος παράδοσης: Το τυποποιημένο μηχάνημα είναι 30 ημέρες. Το προσαρμοσμένο μηχάνημα είναι σύμφωνα με τη σύμβαση
Όροι πληρωμής: T/T, LC
Λεπτομέρειες
Τόπος καταγωγής:
Shanghahi, Κίνα
Πιστοποίηση:
ISO 9001, ISO14001, SGS, CE Certificate
Μοντέλο:
80ton
Τύπος κατηγορίας:
Μηχανή διάτρησης εμπορευματοκιβωτίων τροφίμων
Μορφή εμπορευματοκιβωτίων:
Τετράγωνο, Στρογγυλό
Βασικές λειτουργίες:
Αυτόματη διακοπή λειτουργίας, μέτρηση παραγωγής
Εφαρμογή:
Διάτρηση και διαμόρφωση εμπορευματοκιβωτίων τροφίμων
Σύστημα διατροφής:
Αυτόματο
Ακρίβεια μέτρησης:
Σφάλμα ≤1 μονάδες/1000 μονάδες
πιστοποιήσεις:
Εφαρμογή της οδηγίας 2008/57/ΕΚ του Ευρωπαϊκού Κοινοβουλίου και του Συμβουλίου
Εφαρμοστέο υλικό μοντέλο:
3003Η24, 8011H22, 3004H24
Ταχύτητα εργασίας:
35-70 εγκεφαλικά επεισόδια/ώρα
Ταχύτητα παραγωγής:
12000pcs/ώρα
Ηλεκτρονικό plc:
Μιτσούμπισι
Μάρκα με κινητήρα:
Siemens
Ηλεκτρικός:
Σκιτζερς
Συσκευασία λεπτομέρειες:
Ξύλινη θήκη
Επισημαίνω:

food container punching machine with lubrication

,

closed lubrication punching machine

,

LK-T80 food container machine

Περιγραφή προϊόντων

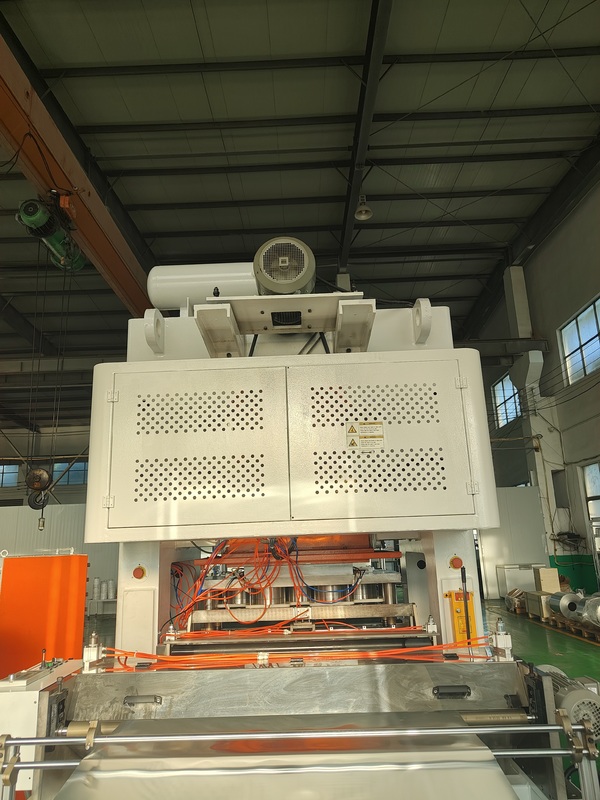

LK-T80 Food Container Punching Machine Equipped with Closed Lubrication System





Product Description:



LK-T80 Food Container Punching Machine Equipped with Closed Lubrication System 0



LK-T80 is a food container punching machine equipped with a closed lubrication system, mainly solving the problem of "easy oil leakage and food container contamination in traditional lubrication" in aluminum foil lunch box factories. The machine’s lubrication system adopts a fully closed design; lubricating oil circulates in a closed loop and will not leak onto aluminum foil plates or finished containers, meeting the cleanliness requirements of food-grade production. During daily production, aluminum foil is automatically fed and punched, and the lubrication system automatically supplies oil to the punching parts—no need for workers to refill oil frequently or clean leaked oil stains. Whether mass-producing square lunch boxes or round pans, it can ensure that the punching parts are well-lubricated and run smoothly, which not only reduces part wear and extends machine life but also prevents oil contamination from affecting container quality. It is very suitable for food container production scenarios requiring high cleanliness and can also connect to production lines for continuous processing.



Technical Parameters:



Core Functions Automatic Shutdown, Production Counting
Container Shape Squrar Round
Certification Items CE, SGS, ISO9001, ISO14001
Applicable Material Model 3003H24, 8011H22, 3004H24
Processing Function Punching Forming Cutting
Stroke 240mm Fix
Warranty 1 Year
Low Voltage Electrical Schneider
Main Motor Siemens
Capacity 3 Cavities



Functions:



LK-T80 Food Container Punching Machine Equipped with Closed Lubrication System 1



1.Closed Anti-leakage: Fully closed design of the lubrication system, no lubricating oil leakage, avoiding contamination of aluminum foil and finished containers;
2.Automatic Lubrication: Lubricating oil is supplied via automatic circulation, no frequent manual oil refilling, reducing manual operation;
3.Food Compatibility: Compatible with food-grade lubricating oil, meeting the cleanliness standards of food container production;
4.Part Protection: Continuous lubrication of punching parts, reducing wear and extending the service life of the machine and molds;
5.Automatic Production: Fully automatic aluminum foil feeding and punching molding, suitable for batch production, improving efficiency and reducing errors.

Sample:



LK-T80 Food Container Punching Machine Equipped with Closed Lubrication System 2LK-T80 Food Container Punching Machine Equipped with Closed Lubrication System 3LK-T80 Food Container Punching Machine Equipped with Closed Lubrication System 4LK-T80 Food Container Punching Machine Equipped with Closed Lubrication System 5



FAQ:



Q: Benefits of closed lubrication?
A:
Less oil leakage, cleaner workshop.



Q: How often to add oil?
A:
Monthly check under normal use.



Q: How to maintain the system?
A:
Replace filters regularly, check seals.



Q: Suitable for food production?
A:
Closed design meets hygiene requirements.



Q: Operators needed?
A:
One person handles operation and maintenance.



Q: What if oil leaks?
A:
Check seals and replace if needed.
